HDL3526

• System type: 2*6.5″ Active Line Array System
• Frequency response: 40-20KHz
• Sensitivity(1W/1M): 97dB
• Max. SPL @ 1m: 129dB
• Power rating(AES): 800W+250W
• Nominal impedance: 8 ohm
• LF Transducer: 1*15″ Woofer,4″ VC,Neodymium
• HF Transducer: 2*6.5″ Woofer+1.5″ Driver
• Cabinet material: Plywood+Plastic
• Boxappearance: Polyurea Painting

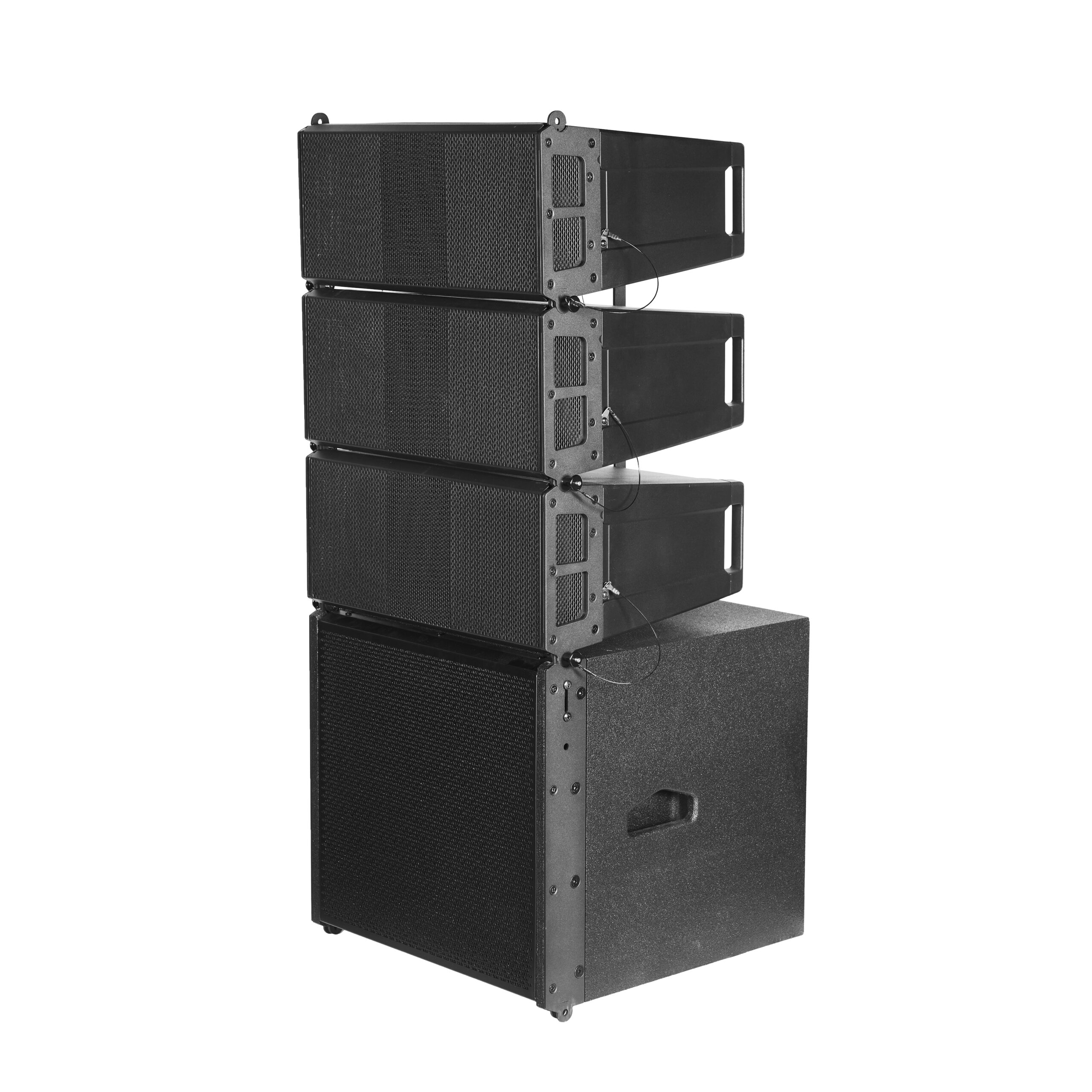

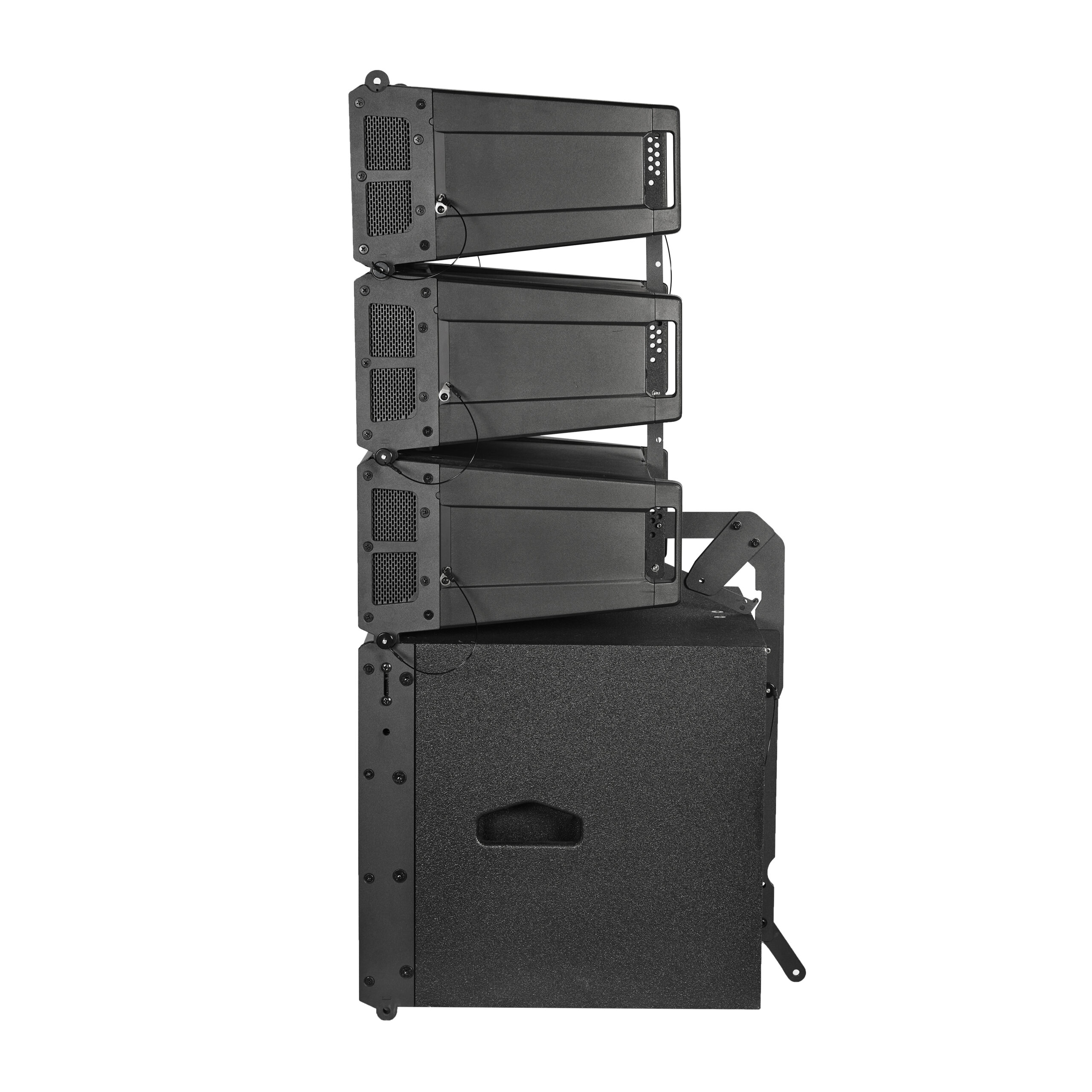

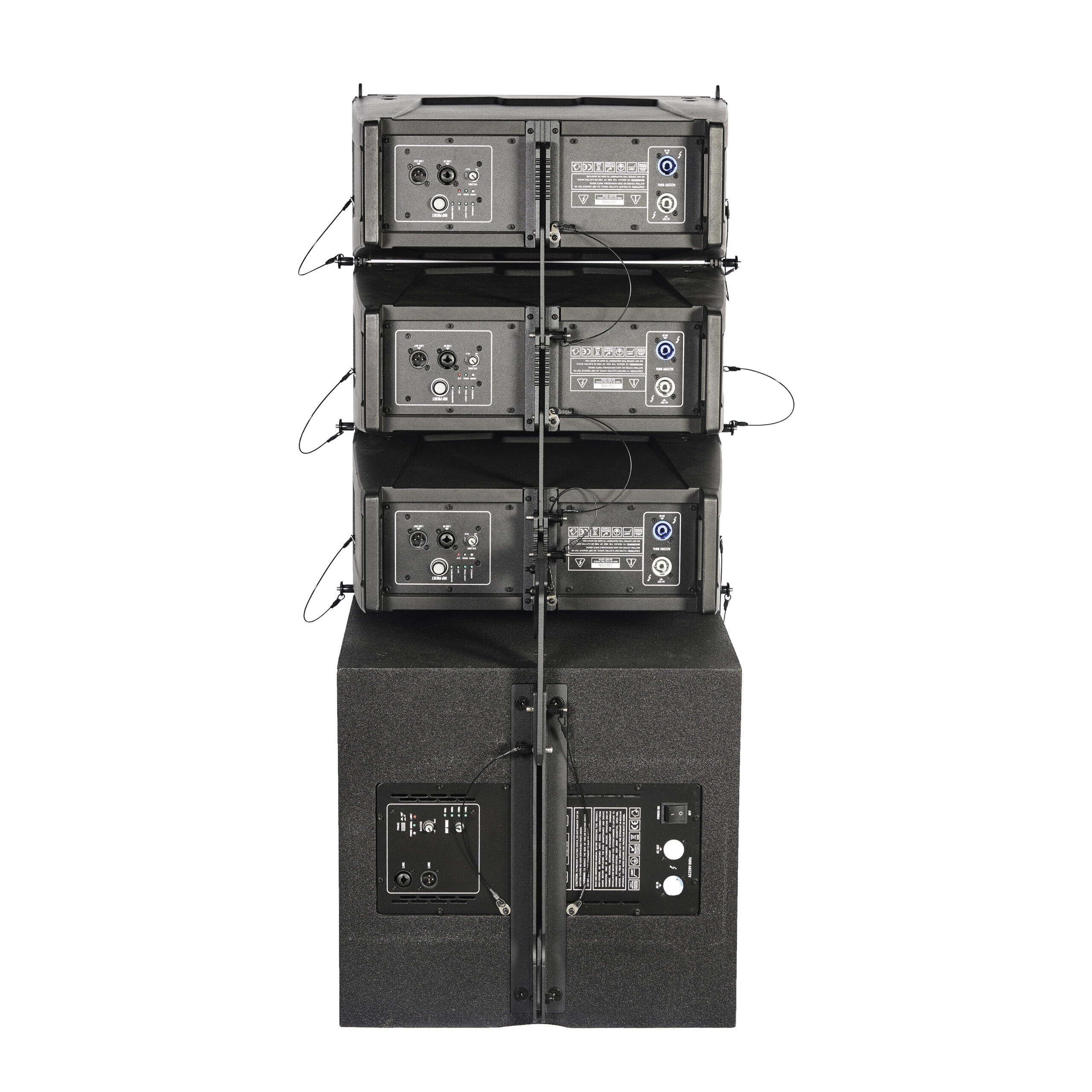

The HDL3526 is a compact 2-way active line array system built for professional sound reinforcement in versatile environments. It features dual 6.5″ woofers and a 1.5″ compression driver, delivering clear, high-definition audio with a wide 40Hz–20kHz frequency response and a peak SPL of 129dB. Driven by an 800W + 250W Class D amplifier, the system ensures powerful and efficient performance. The low-frequency section includes a 15″ neodymium woofer with a 4″ voice coil for deep, punchy bass. Housed in a durable plywood and plastic hybrid cabinet with a polyurea finish, the system supports flexible installation options and is ready for touring or fixed installations.
