NEW

NX912A

  • System type: 12″ Active Two-Way Full-range Loudspeaker
  • Frequency response: 55-20KHz
  • LF Transducer: 1*12″ Woofer,2.5″ VC,60 Oz
  • HF Transducer: 1.75″ Driver
WOOFER
FULL RANGE LOUDSPEAKER
TWO WAY
TT+
Categories: ,
Click to enlarge

  • System type: 12″ Active Two-Way Full-range Loudspeaker
  • Frequency response: 55-20KHz
  • Sensitivity(1W/1M): 97dB
  • Max. SPL @ 1m: 123dB
  • Power rating(AES): 400W
  • Nominal impedance: 8 ohm
  • LF Transducer: 1*12″ Woofer,2.5″ VC,60 Oz
  • HF Transducer: 1.75″ Driver
  • Cabinet material: Plywood
  • Box appearance: Polyurea painting

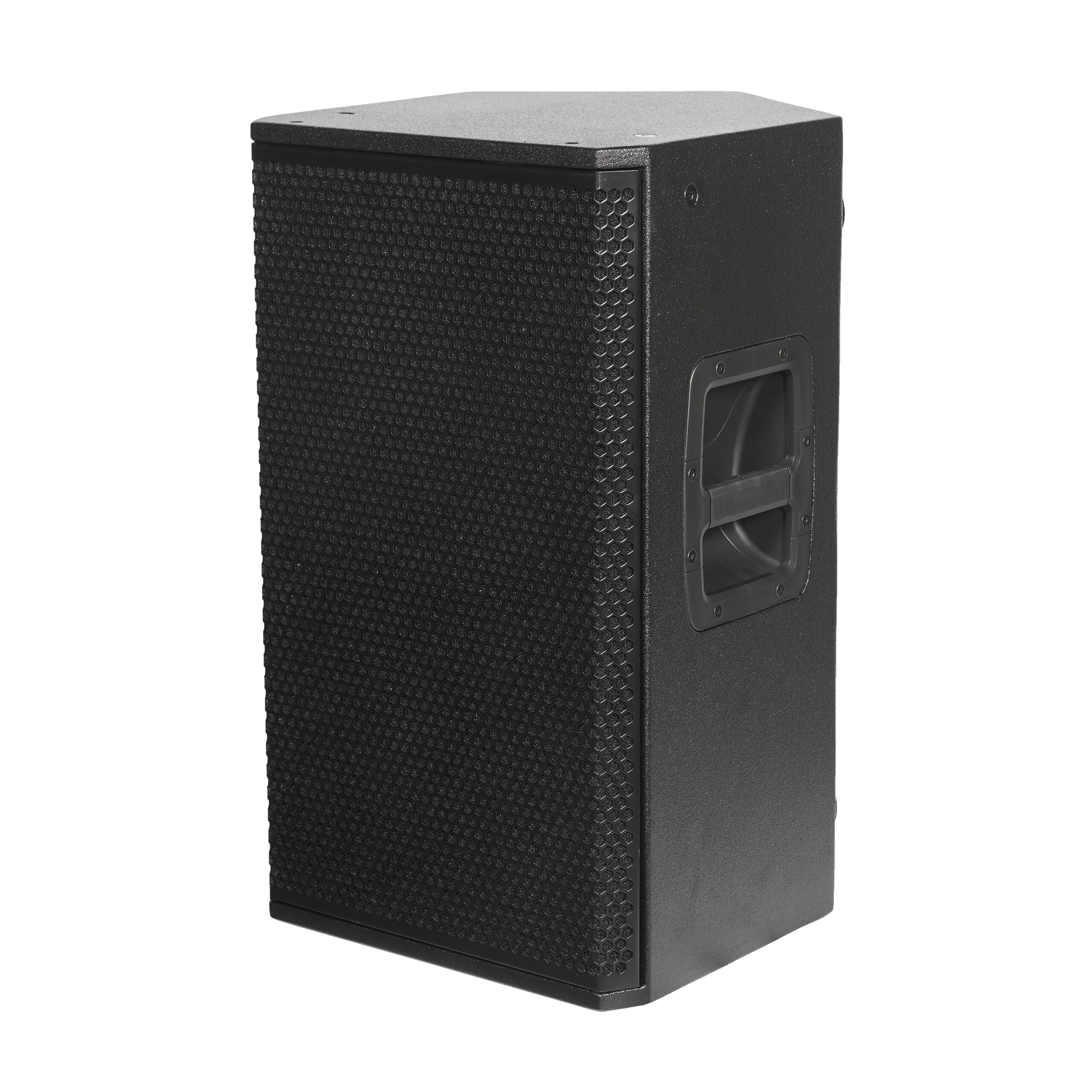

The NX912A is a 12″ ACTIVE TWO-WAY FULL-RANGE LOUDSPEAKER designed for versatile sound reinforcement. It features a 12″ woofer with a 2.5″ voice coil and 60oz magnet, paired with a 1.75″ high-frequency driver. With a frequency response of 55Hz–20kHz, 97dB sensitivity, and a maximum SPL of 123dB, it delivers clear and balanced sound. Powered by a 400W Class D amplifier and housed in a rugged plywood cabinet with polyurea coating, it is ideal for portable and fixed installations.
